300mm Wide High-Speed Fin Forming Machine with Servo Cutting
Product Description

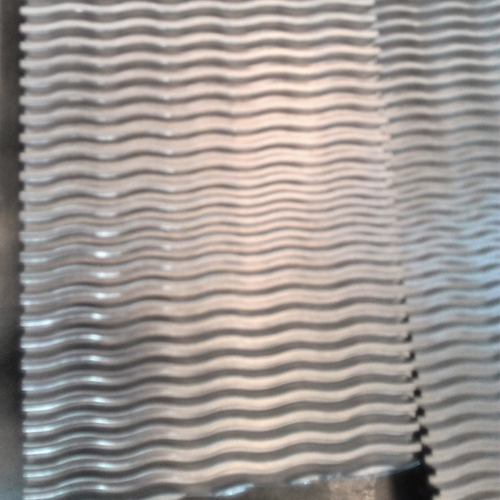

Our fin forming machine is a specialized processing equipment designed for manufacturing heat transfer fins—key components of heat exchangers. These fins are widely used in compact heat exchangers across industries such as automotive, marine, HVAC, compressors, construction and mining machinery, aviation, and hydraulic oil cooling.
Compared to similar products, our machine offers the following advantages:
- Centered Main Spindle The centered spindle reduces the number of force transmission components, minimizing power loss and improving machine accuracy.
- High Precision Enhanced flatness of the upper and lower die tables ensures stable performance and consistency.
- Automatic Lubrication System Reduces wear and extends machine life through efficient, automated lubrication.
- Stepless Speed Adjustment Allows seamless speed changes without the limitations of traditional mechanical gear systems.
- Compact Structure & Easy Operation Optimized design enables convenient mold height adjustment by a single operator.
- High Efficiency & Low Power Consumption Improved precision and reduced wear contribute to higher efficiency. Equipped with a 3KW motor for energy savings.
- Easy Maintenance & Low Cost Streamlined structure simplifies maintenance and reduces downtime and costs.
- Modular Design Supports quick mold changes to produce fins of various specifications and shapes.
Key Features
- Lower drive spindle
- Improved transmission mechanism
- Compact and rationally designed structure
- High precision and stability
- Automatic lubrication with separated oil circuit collection
- Strong adaptability to various production needs
- Easy and fast maintenance
Technical Parameters
| Parameter |
Value |
| Fin Width |
300mm |
| Die Table Flatness |
≤0.03mm |
| Feed Speed |
0–4000 mm/min |
| Feeding Frequency |
0–25 times/min |
| Motor Power |
0.75 kW |
| Power Supply |
380V±10%, 50Hz±2% |
| Machine Weight |
2000 kg |
| Strokes per Minute |
25–125 (Variable Frequency) |
| Maximum Fin Height |
12mm |
Applications
Sunhope’s Radiator Fin Forming Machine, manufactured in Guangdong, China, is a versatile and high-performance solution ideal for automotive radiator production and various industrial applications. Its robust construction, precise blade thickness (1.1mm), and customizable fin width make it an essential asset for enhancing manufacturing capabilities.
Structural Overview
The BCX fin forming machine consists of:
- Main host seat
- Spindle
- Upper and lower die tables
The spindle is fixed at both ends within the host seat. Guide posts and springs connect the lower and upper tables. The upper die is fixed below the upper table, while the lower die is mounted on a sliding block above the lower table.
Three cams on the spindle drive pillars for vertical reciprocating motion, enabling periodic up-and-down movement of the die tables. The central cam drives a connecting rod to enable horizontal reciprocating feeding motion via the sliding block.
